Post by ODJeepster on Oct 9, 2016 14:29:54 GMT -8
Some electrical goodies have been showing up for the rewiring project. Headlights, wipers, and heater switch Tach Air pressure Coolant Temp I am still at the drawing board for locations of the gauges and switches, also waiting on Oil Pressure, Fuel Level, and I haven't decided yet on either a Volt or an Amp gauge. What is the preferred gauge for electrical monitoring?
|
|
|
Post by petee on Oct 9, 2016 18:39:05 GMT -8
the pile of part is getting larger.....it's going to look good.
|
|
|
Post by ljdude on Oct 9, 2016 19:11:01 GMT -8
I liked the aluminum look on the top of the roll cage.
|
|
ExCabSwap
Active Member
Active Member
Posts: 264
|
Post by ExCabSwap on Oct 9, 2016 20:50:43 GMT -8
Awesome gauges!
Voltage is a really great sign of battery life, as well as alternator function.
With a dual battery setup, I've seen some people monitor amperage, but unless you're worried that something will be drawing high current, it might not be worth it.
Tach-looks like you're already cruisin!
|
|
ODJeepster
Active Member
Active Member
pack it in, pack it out
Posts: 379
|
Post by ODJeepster on Oct 10, 2016 7:29:48 GMT -8
I liked the aluminum look on the top of the roll cage. I also liked the bare aluminum on top until towing it home from Hoodoo, the sun was reflecting off it into my rearview and it was like some @$$hole behind me had his light bar turned on lol
|
|
ODJeepster
Active Member
Active Member
pack it in, pack it out
Posts: 379
|
Post by ODJeepster on Oct 10, 2016 7:39:11 GMT -8
Awesome gauges! Tach-looks like you're already cruisin! Thanx Phil, the tach is what Autometer calls "Air Core" technology and it's normal for then to sit off of zero until hooked up
|
|
ODJeepster
Active Member
Active Member
pack it in, pack it out
Posts: 379
|
Post by ODJeepster on Oct 17, 2016 17:48:44 GMT -8
Dash progress
|
|
ExCabSwap
Active Member
Active Member
Posts: 264
|
Post by ExCabSwap on Oct 17, 2016 21:38:50 GMT -8
NICE! Those Autometer gauges look right at home next to the old school fan switch!
|
|
ODJeepster
Active Member
Active Member
pack it in, pack it out
Posts: 379
|
Post by ODJeepster on Nov 6, 2016 21:14:32 GMT -8
I test fit the new gauge panel in the dash While at Napa I found some momentary push button switches to use for winch cable In and Out And also found some jump start lugs that will be a neat little feature Here is the winch controls mounted. Green lighted rocker switch to power the push buttons. Also made a harness for the gauge lights.
|
|
ODJeepster
Active Member
Active Member
pack it in, pack it out
Posts: 379
|
Post by ODJeepster on Nov 13, 2016 18:57:13 GMT -8

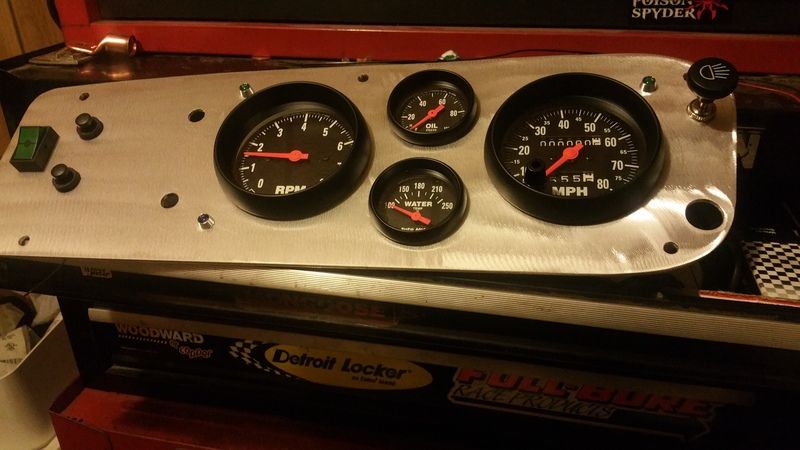

Progress on the headlight circuit. Wired in a relay for the low beams and a relay for the high beams to take take the load of the switch. I am using 12ga and 10ga because it's what I have. Once all the wires are run I will loom clean up the mess. I scored a great deal on this Odyssey Performance 31-800 battery. 1600 pulse cranking amps, 188 minutes of reserve power.....it's a badass!!!! Because of its size I decided to mount in the back Added the indicator lights and reinstalled the gauges. It'sgetting close to being installed in the dash.
|
|
|
Post by petee on Nov 15, 2016 7:11:28 GMT -8
Getting closer buddy, looking good.
|
|
|
Post by petee on Nov 15, 2016 7:12:02 GMT -8
Hurry up snow is coming
|
|
ODJeepster
Active Member
Active Member
pack it in, pack it out
Posts: 379
|
Post by ODJeepster on Nov 24, 2016 11:51:21 GMT -8
Happy Thanksgiving!!! Wired in a 150amp circuit breaker from the alternator to the ignition switch and headlight relays I tested the headlights, low beams and high beams both work. Then I wired the 12v+ and grounds at the back of the gauges and lights Unfortunately I soon realized that the location of the Speedo will not work because the speedo cable is almost touching the defrost vent. So I switched the Speedo and Tach locations and cut apart the freshly done wiring harness lol
|
|
|
Post by petee on Dec 3, 2016 20:14:05 GMT -8
Bummer
|
|
ODJeepster
Active Member
Active Member
pack it in, pack it out
Posts: 379
|
Post by ODJeepster on Mar 27, 2017 10:30:17 GMT -8
